Ecosoft P1 meter

 24,75 70,21

The P1 meter is a device that can be connected to the smart meter in the fuse box. This gives you more insight into your energy consumption.

Building block of a smart and economical electrical installation
Connect the P1 meter with a cable to the P1 port of the smart meter. This allows the P1 meter to read current energy consumption and meter readings. The P1 meter can pass this data on to Ecosoft devices and other devices. This makes it possible to better regulate energy consumption (and the return of energy). Suitable for 1-phase and 3-phase systems without additional costs.

The data can be stored and displayed in graphs via a connection to the cloud server.

There are three types, all of which include a 1 year Ecosoft cloud license:

• P1 meter WiFi only (without USB adapter): € 29,95
• P1 meter WiFi + Ethernet (with USB adapter): € 64,95
• P1 meter WiFi + Ethernet & PoE (without USB adapter): € 84,95

SKU: ecosoft.p1meter Category:

Description

The P1 meter is a device that can be connected to the smart meter in the fuse box. This gives you more insight into your energy consumption.

Building block of a smart and economical electrical installation
Connect the P1 meter with a cable to the P1 port of the smart meter. This allows the P1 meter to read current energy consumption and meter readings. The P1 meter can pass this data on to Ecosoft devices and other devices. This makes it possible to better regulate energy consumption (and the return of energy). Suitable for 1-phase and 3-phase systems without additional costs.

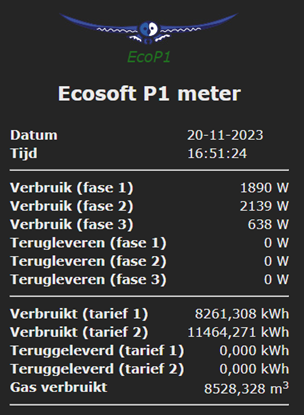

The Ecosoft P1 meter shares data with your smart-grid devices via WiFi or (optional) ethernet connection. You can view this data in the web interface of the P1 meter as well.

One-off costs
The P1 meter is (even without a subscrition) able to read a.o. the following data:
• Electricity consumed and supplied in kWh (tariffs 1 and 2 separately)
• Current consumption and current return in kW
• Data for 1-phase and 3-phase connections: voltage, current, consumption, return
• Data on power failures and voltage deviations
• Meter reading in m3 of meters connected to smart meter (gas, possibly water).

For 3-phase connections, the current consumption and current return are displayed per phase. In addition, the totals (meter readings) are monitored per tariff. To see more data, click on the button P1 Gegevens (P1 data).

The electrical supply of the P1 meter depends on the type you choose: supply via P1-port, USB or LAN-PoE.
There are three types, all of which include a 1 year Ecosoft cloud license:

• P1 meter WiFi only (without USB adapter): € 29,95
• P1 meter WiFi + Ethernet (with USB adapter): € 64,95
• P1 meter WiFi + Ethernet & PoE (without USB adapter): € 84,95

Note: WiFi range is not good enough everywhere. We recommend the P1 meter + Ethernet being the most relyable option.

As seen in the image above, two variants do not include and USB adapter. But it is sold separately in this webshop.

Connection to the Ecosoft server
Via a connection to the Ecosoft server these data can be stored and displayed in graphs.
The included P1 meter cloud license is valid for 1 year. This license can be extended with 1 or 3 years.

Save feed-in costs
The P1 meter is able to perform another useful task for supported inverters of PV systems, namely to directly control a PV system to save costs on the feed-in of electricity to the grid. See compatible inverters.

Additional information

P1-meter

WiFi only, zonder USB adapter, WiFi + Ethernet, met USB adapter, WiFi + Ethernet & PoE, zonder USB adapter
